Products

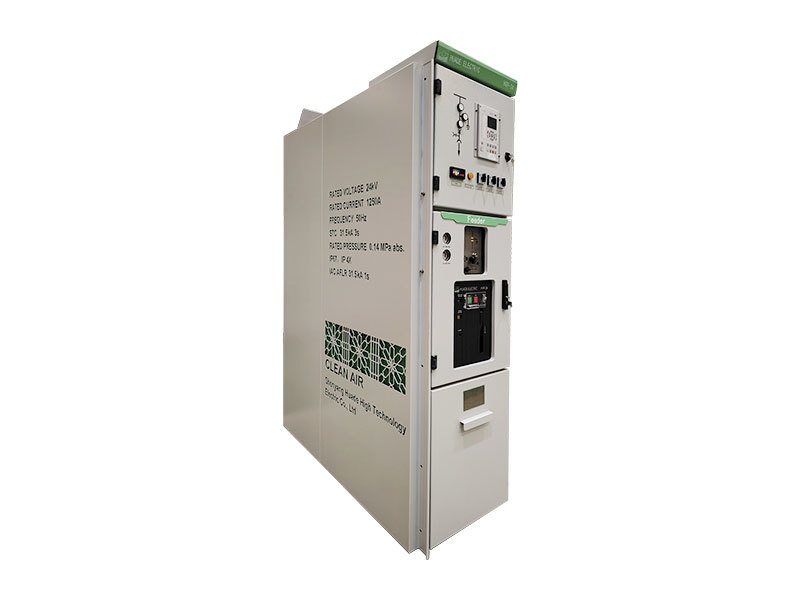

HG13-24 Green Gas-Insulated Ring Main Unit (RMU)
Product Features：
● Insulation Medium: Clean air;
● Miniaturizedwith small size，Space-saving;
● Modular structure realizing flexible expansion via arbitrary unit/module combinations;
● Safe and reliable operation, maintenance-free;
● Not affected by the environment oraltitude;
● Meeting different wiring requirements of the system;
● Intelligent control and protection unit;
● Intelligent and digital online monitoring function.
HTZW32-27 Outdoor High-Voltage AC Automatic Recloser
Product Features:
● Vacuum interrupting, air insulation, embeddedpoles.
● Permanent magnet mechanism with high sensitivity and long service life.
● Accurate collection of 3-phase current, zero-sequence current, 3-phase voltage, and zero-sequence voltage signals.
● IP65 enclosure (AISI 316 stainless steel) with strong corrosion resistance, anti-condensation, and anti-pollution performance, suitable for outdoor, chemical, and marine environments.
● Small dimensions, light weight, easy to install.
● Military-grade aviation plug-ins for external components, ensuring waterproof, corrosion proof, convenient and reliable connection.
● Convenient manual opening/closing operation.
● Configurable low-power controller for energy efficiency.
HG4-12 Green Cubical type gas-insulated switchgear (Green C-GIS) is an environment-friendly gas-insulated metal-enclosed switchgear independently developed by Huade High-Tech, which uses clean air as the insulating medium. With international leading technical level, it is a new generation of medium voltage switchgear integrating vacuum arc extinguishing technology, APG solid sealing technology, gas insulation technology and interface insulation technology, complying with standards like IEC62271, GB11022, GB3906 and DL/T404. Passing all type tests and China national new product technical appraisal, the product is widely applied to various power systems, such as power transmission and transformation station network, urban power supply network, large industrial and mining enterprises, petrochemical industry, metallurgy and urban rail transit.
XGN118-12 green gas-insulated RMU is an environment-friendly product independently developed by Huade High-tech. It is applicable to the power system with rated voltage of 12kV and three-phase AC of 50Hz . It can receive and distribute network power, and implement measurement, monitoring, communication, control and protection for normal operation of the system. The product is a new generation of medium voltage switchgear integrating vacuum interrupter technology, APG solid sealing technology and gas insulation technology, complying with standards like IEC62271, GB11022, GB3906 and DL/T404. Passing all type test and national new product technical appraisal, the product is widely applied to secondary distribution stations, urban power supply networks, large-scale industrial and mining enterprises, petrochemical, metallurgy, commercial areas and other places.
HG9-24 Green Cubical type gas-insulated switchgear (Green C-GIS) is an environment-friendly gas-insulated metal-enclosed switchgear independently developed by Huade High-tech, which uses clean air as the insulating medium. With international leading technical level, it is a new generation of medium voltage switchgear integrating vacuum arc extinguishing technology, APG solid sealing technology, gas insulation technology and interface insulation technology, complying with standards like IEC62271, GB11022, GB3906 and DL/T404. Passing all type tests and China national new product technical appraisal, the product is widely applied to various power systems, such as power transmission and transformation station network, urban power supply network, large industrial and mining enterprises, petrochemical industry, metallurgy and urban rail transit.
HG3 Green Cubical type gas-insulated switchgear (Green C-GIS) is an environment-friendly gas-insulated metal-enclosed switchgear independently developed by Huade High-tech, which uses clean air as the insulating medium. With international leading technical level, it is a new generation of medium voltageswitchgear integrating vacuum arc extinguishing technology, APG solid sealing technology, gas insulation technology and interface insulation technology, complying with standards like IEC62271, GB11022, GB3906 and DL/T404. Passing all type tests and China national new product technical appraisal, the product is widely applied to various power systems, such as power transmission and transformation station network, urban power supply network, large industrial and mining enterprises, petrochemical industry, metallurgy and urban rail transit.
The ZHN3-72.5 product is independently developed by our company, and it is the first time in the world that the solid sealing process of the vacuum interrupter is applied to the C-GIS product of the 72.5 kV voltage level, filling the international gap and leading the international technical level. Low-pressure SF6 gas is used as the insulating medium phase to phase and phase to earth of the switchgear, and the gas consumption is only 7% of that of similar products; the use of solid-sealed vacuum circuit breakers avoids the generation of harmful gases and greatly reduces the use and emission of SF6.
ZHN3A-72.5 Green GIS for Wind & Solar Energy
Huade Electric has researched and developed ZHN3A-72.5 Green GIS specially used for new energy. This new fluorine-free environment-friendly 72.5kV gas-insulated metal-enclosed switch adopts the world's leading new science and technology and production process.
It has high reliability and maintenance-free high-tech fluorine-free environment-friendly switch equipment with high technical parameters (rated current is 1250A, up to 2500A); rated short-circuit breaking current 31.5kA, up to 40kA) and small floor area (length of 2500mm, width of 980mm).
HG6-72.5 (ZHW3B-72.5) hybrid green gas insulated switchgear (HGIS) is a new environment-friendly product with international leading level and independently developed by Huade High-Tech. It is used at 66kV side of high voltage substation for receiving and distributing network power, and for controlling and protecting the system. The product fully conforms to IEC62271-1, IEC62271-203, GB11022, GB7674, DL/T617 and other standards, and has passed all type tests and national new product technical appraisal. It is mainly used outdoors, and also can be used indoors, and is widely applied to various fields of national economy such as power transmission and transformation system, large-scale industrial and mining enterprises, petrochemical industry, metallurgy, railway electrification and so on.
HG11-145 three-phase common tank SF6 GIS，with the most advanced technology and design concepts in the world，the product adopts the modular design concept and the modular layout of standard components, which has the advantages of small floor area (with an interval width of only 0.8m), advanced technology and high reliability.HG11-145 GIS fully meets IEC 62271-203, GB7674, DL617 and other standards. With high technical parameters and stable and reliable quality.
