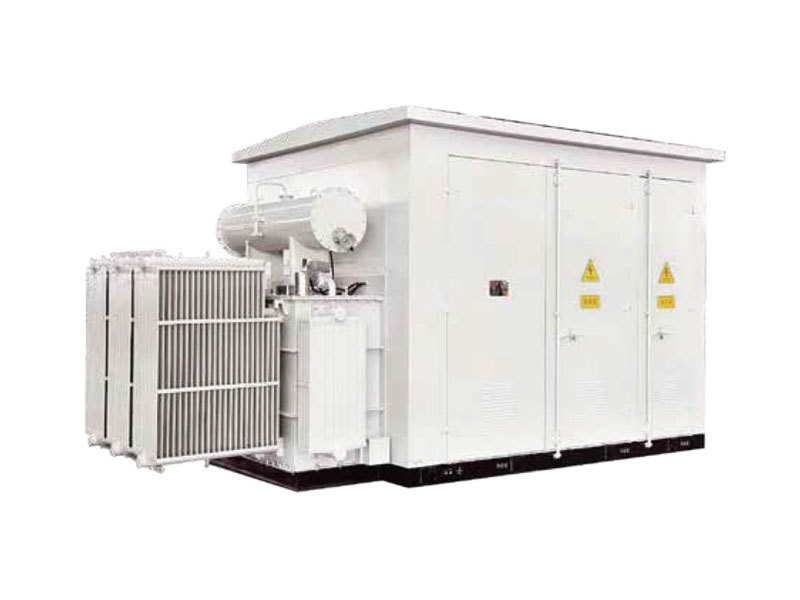

Yb-40.5 Wind Power Generation Combined Transformer Substation
Key Features:
● Small size
● Easy Installation
● Low energy loss
● Light weight
● Low noise
● Sand protection
● Guard against theft
● Strong overload capacity
● Simple maintenance
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Details
-
Key Features:
● Small size
● Easy Installation
● Low energy loss
● Light weight
● Low noise
● Sand protection
● Guard against theft
● Strong overload capacity
● Simple maintenance
Technical Parameters:No. Item Unit High-voltage switchgear Transformer Low-voltage switchgear 1 Rated voltage kV 40.5 35 0.69/0.95/1.14 2 Rated capacity kVA - 1000～12500 - 3 Rated frequency Hz 50/60 - 50/60 4 Rated current A 50～1250 - 2000～6300 5 Rated insulation level Power frequency withstand voltage (1min) Phase to earth, phase to phase kV 95 85 5 Across isolating distance kV 118 - - Lightning impulse withstand voltage Phase to earth, phase to phase kV 185 220 12 Across isolating distance kV 215 - - 6 Rated short-circuit breaking current kA 31.5 - 50 7 Rated short-time withstand current kA 31.5 - 50 8 Rated short circuit making current kA 80 9 Rated peak withstand current kA 80 105 10 Internal arc fault IAC IAC-AB, 31.5kA, 0.5S 11 Protection level IP55 12 Noise level dB ≤55
Yb-40.5 Wind Power Generation Combined Transformer Substation
Key Features:
● Small size
● Easy Installation
● Low energy loss
● Light weight
● Low noise
● Sand protection
● Guard against theft
● Strong overload capacity
● Simple maintenance
